Concrete Rehabilitation
& Repair
Structural concrete repair, sedimentary tank rehabilitation, cathodic protection assessment, and reinforcement restoration for bridges, water treatment facilities, and ageing civil infrastructure.
Concrete rehabilitation restores structural capacity and extends the service life of deteriorated concrete infrastructure. JCY provides condition assessment, repair methodology development, and construction supervision for patch repairs, crack injection, cathodic protection evaluation, and reinforcement restoration on bridges, sedimentary tanks, and water treatment structures -- including the Bolivar WWTP rehabilitation program.
What Concrete Rehabilitation Involves
Concrete deterioration in infrastructure assets typically results from chloride-induced reinforcement corrosion, carbonation, chemical attack in wastewater environments, or structural overloading. The rehabilitation process begins with a condition assessment that maps the extent and severity of deterioration, identifies the underlying mechanism, and determines whether the structure can be repaired in situ or requires partial reconstruction.
Patch repair is the most common intervention: deteriorated concrete is removed to behind the reinforcement, corroded bars are cleaned or replaced, a bonding agent is applied, and proprietary repair mortar is placed in layers to rebuild the section profile. For structures with widespread corrosion, cathodic protection systems may be assessed as an alternative to wholesale concrete removal -- either impressed current or sacrificial anode systems that halt the electrochemical corrosion process.
Crack injection uses low-viscosity epoxy or polyurethane resins injected under pressure to seal structural cracks, restore load transfer across the crack plane, and prevent further moisture ingress. In water-retaining structures such as sedimentary tanks, crack sealing is critical to maintaining operational containment and preventing ground contamination.
Patch Repair
Concrete removal to sound substrate, reinforcement preparation, bonding agent application, and repair mortar placement in controlled layer thicknesses with curing regime management.
Cathodic Protection Assessment
Half-cell potential mapping, chloride profiling, corrosion rate measurement, and feasibility assessment for impressed current or sacrificial anode cathodic protection systems.
Crack Injection
Low-pressure epoxy injection for structural crack repair, high- pressure polyurethane injection for active water leaks, and surface sealing for non-structural shrinkage cracks.
Rehabilitation Experience
40+
Years Life Extension
WWTP
Tank Rehabilitation
H2S
Chemical Attack Repair
3
Repair Methodologies
At the Bolivar Wastewater Treatment Plant, JCY provided construction engineering for the rehabilitation of sedimentary tanks that had suffered severe concrete deterioration from hydrogen sulphide (H2S) attack and chloride exposure. The work involved condition assessment of tank walls and columns, development of repair methodologies for different deterioration mechanisms, and construction supervision of patch repairs, protective coatings, and structural strengthening measures.

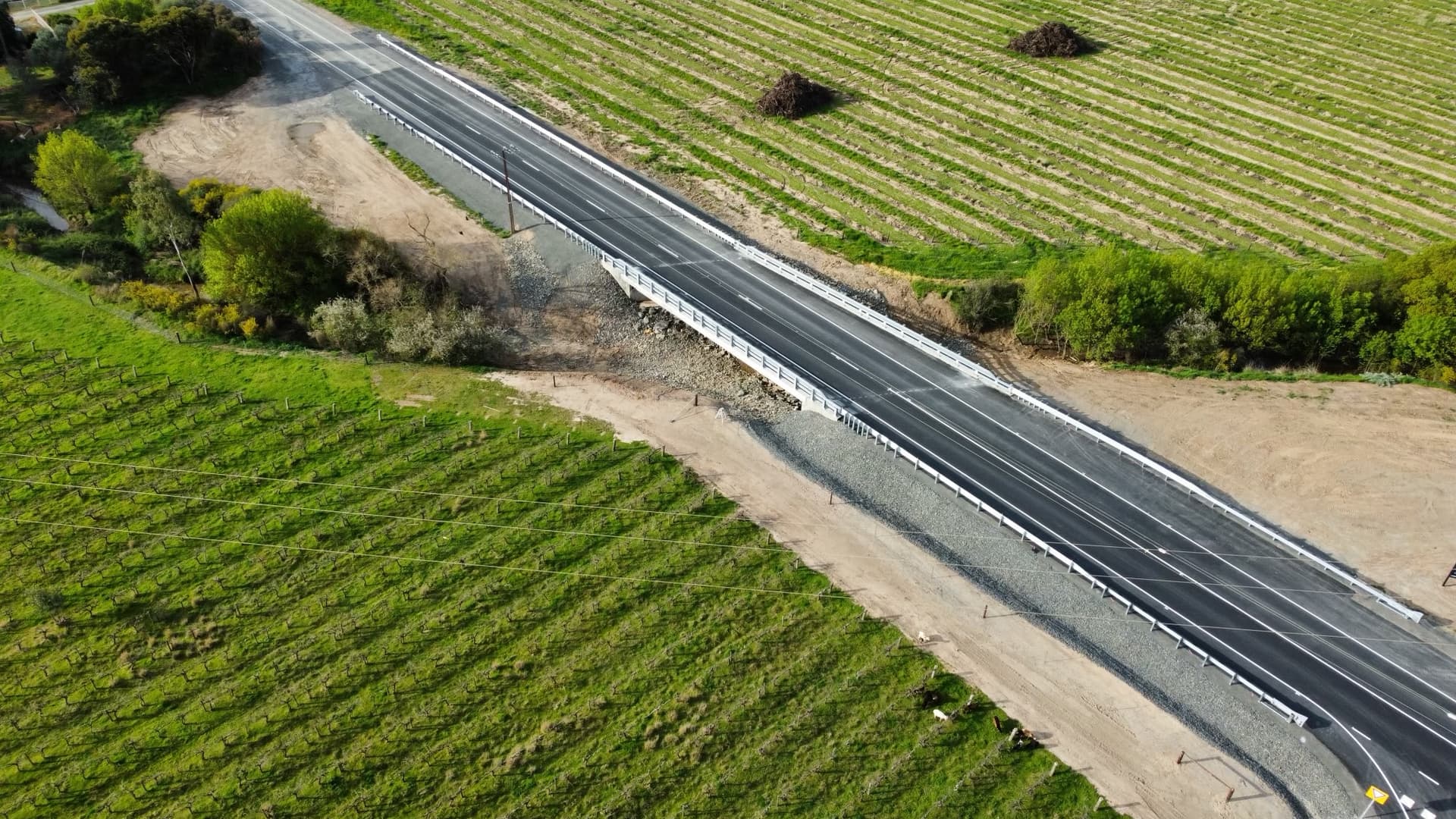

Bridge rehabilitation experience spans the DIT SA bridge renewal program, where concrete repair and joint replacement works were delivered on operational bridge assets across the South Australian road network. These projects required integration of concrete repair sequencing with traffic management, weather constraints, and asset operational requirements.
Related Projects
Bolivar WWTP Rehabilitation
Sedimentary tank concrete rehabilitation including H2S attack repair, protective coatings, and structural strengthening at South Australia's largest wastewater treatment facility.
View ProjectDIT SA Bridge Renewal
Concrete repair and joint replacement on existing bridge assets across the South Australian road network under live traffic conditions.
View ProjectGawler Rail Electrification
Bridge condition assessment and repair specification development for existing rail structures on the Gawler line electrification corridor.
View ProjectRelated Services
Bridge Engineering
Condition assessment, repair specification, and rehabilitation project delivery for bridge structures.
Structural Engineering
Structural capacity assessment and strengthening design for deteriorated concrete elements.
Construction Verification
Quality verification of concrete repair materials, application methods, and protective coating systems.
From the Field
Photography from real projects demonstrating this capability.
Have ageing infrastructure that needs attention?
From bridge deck repairs to wastewater tank rehabilitation, JCY provides the construction engineering that extends asset life and restores structural performance.
